Overview
The standard is that the vertical members of the scaffolding are equipped with a socket (eight round or box type) for precise alignment. A series of "v" positioning ears are welded on the tube for connecting crossbeams and auxiliary components. Open standard and loose sockets are also available.
Material: q355/q235Surface treatment: black, hot-dip galvanized, electro-galvanized, powder sprayed.
PRODUCT FEATURES

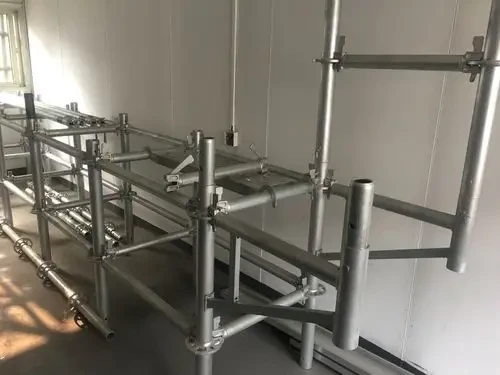

Our cup-lock scaffolding system is mechanically welded with high-strength steel and the surface is hot-dip galvanized.
Each cup-lock scaffolding contains standard parts, horizontal parts, supports, slats, brackets, ladders, stairs, etc.

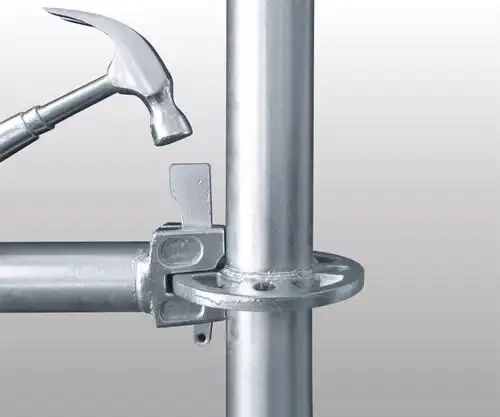

The cup-lock scaffolding is assembled into a "ring" shape using integral wedge connectors.
The cup-lock standard parts are the main components of the cup-lock scaffolding, made of Q345 steel and connected by connecting pins. Our cup-lock standard parts are available in two outer diameters: 48.3 mm (M48) and 60.3 mm (M60). The lengths include 500mm, 1000mm, 1500mm, 2000mm, 2500mm, 3000mm, etc., which can meet your different height requirements; the thicknesses include 3.0mm, 3.2mm, 3.25mm, etc., which can meet the needs of different projects.
Inquiry
To learn more about this product, you can submit your requirements here
Related Products
Steel springboardSteel springboards are widely used construction tools in construction, industry and special projects.
Cup-lock side panel supportCup lock side braces are used on the edge of a scaffold to extend or reach the side where needed. It also helps create access where obstructions may prevent scaffolding from being erected next to a workspace.- Cup-locked middle beamThe middle cross beam of the cup-hook scaffolding is made of Saudi Aramco's hot-dip galvanized od48.3x3.2mm scaffolding tube, which is used as the steel support of the building steel platform.
- Cuplock LedgerThe ledger is used to connect the standard i a longitudinal direction.
Plug connectorThe square cup-lock scaffolding pin is made of 30x30x3mm steel pipe, 300mm long, with 2 holes on it, and comes with 2 sets of bolts and nuts for cup-lock system scaffolding.- H-frame and A-frameH-frame formwork scaffolding is shaped like the letter "H" and is the core of the arch frame scaffolding.
