Aluminum coil
Location:

Overview

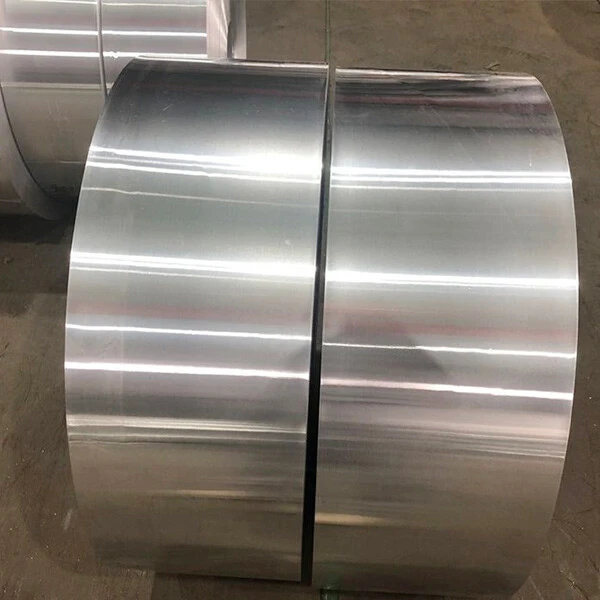

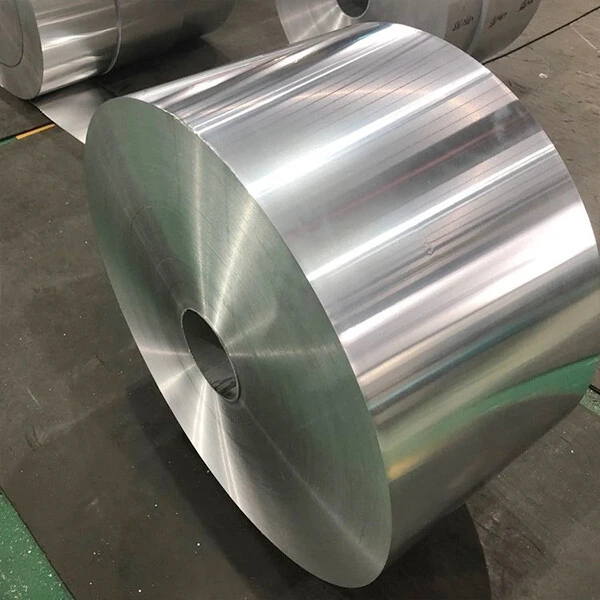

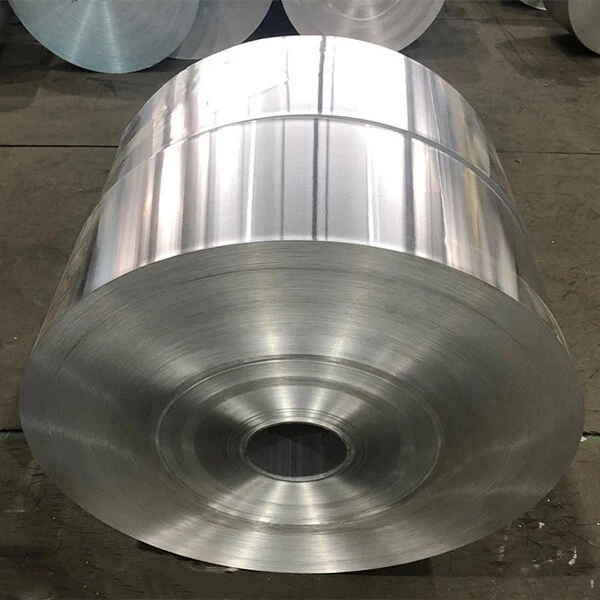

5052 ALUMINUM COIL

5052 aluminum alloy is the most widely used rust-proof aluminum. This alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance, cannot be strengthened by heat treatment, good plasticity during semi-cold hardening, low plasticity during cold hardening, good corrosion resistance, good weldability, poor machinability, and can be polished. It is mainly used for low-load parts that require high plasticity and good weldability and work in liquid or gas media, such as oil tanks, gasoline or lubricating oil pipes, various liquid containers and other small-load parts made by deep drawing: wire is used to make rivets.


AlloySiFeCuMnMgCrZnTiOthers:EachOthers:TotalAl: Min.
10500.250.40.050.050.05-0.050.030.03-99.5
10600.250.350.050.030.03-0.050.030.03-99.6
10700.20.250.040.030.03-0.040.030.05-99.7
11000.95 Si + Fe0.05~0.200.05--0.1-0.050.1599
20140.5~1.20.73.9~5.00.4~1.20.2~0.80.10.250.150.050.15margin
20170.2~0.80.73.5~4.50.4~1.00.4~0.80.10.250.150.050.1591.5 - 95.5
20240.50.53.8~4.90.3~0.91.2~1.80.10.250.150.050.15margin
30030.60.70.05~0.201.0~1.5--0.1-0.050.15margin
3A210.60.70.21.0-1.60.05-0.150.1-0.2--margin
30040.30.70.251.0~1.50.8~1.3-0.25-0.050.15margin
30050.60.70.31.0~1.50.2~0.60.10.250.10.050.15margin
31050.60.70.30.3~0.80.2~0.80.20.40.10.050.15margin
50050.30.70.20.20.5~1.10.10.25-0.050.15margin
50520.250.40.10.12.2~2.80.15~0.350.1-0.050.15margin
57540.40.40.10.52.6~3.60.30.20.150.050.15margin
5A050.50.50.10.3-0.64.8-5.5-0.2-0.050.05margin
50830.40.40.10.4~1.04.0~4.90.05~0.250.250.150.050.15margin
60610.40~0.80.70.15~0.40.150.8~1.20.04~0.350.250.150.050.15margin
60820.70~1.30.50.10.4~1.00.6~1.20.250.20.10.050.15margin
70750.40.51.2~2.00.32.1~2.90.18~0.285.1~6.10.20.050.15margin
