Overview

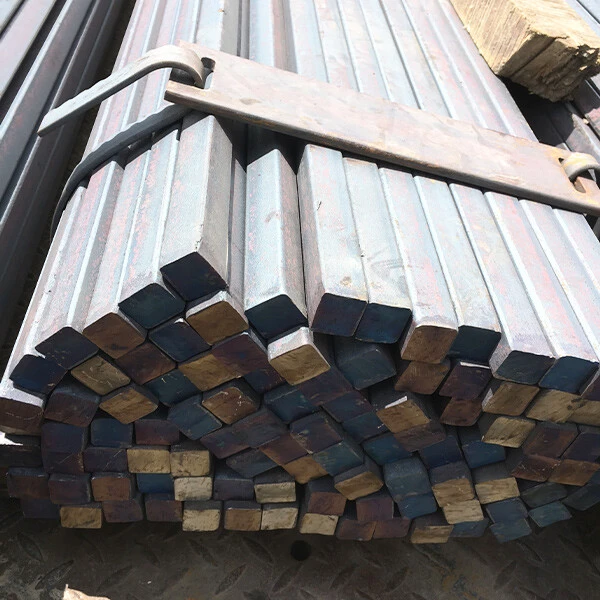

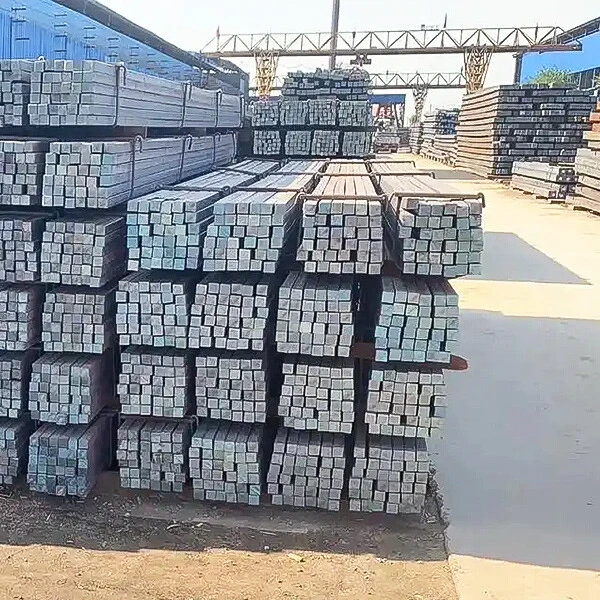

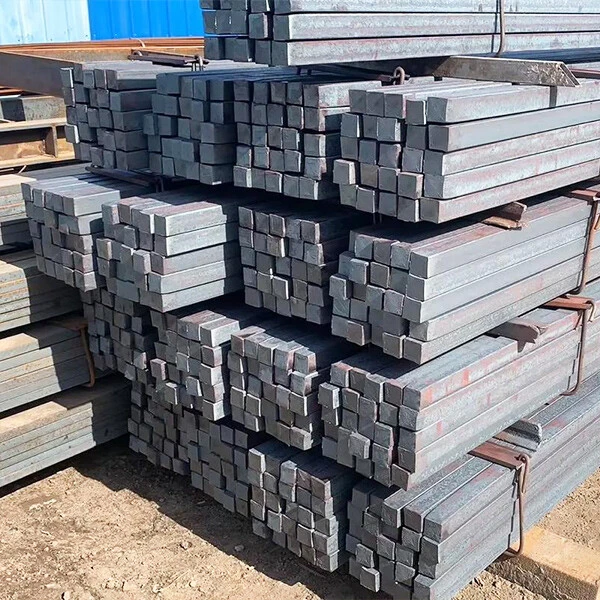

HOT ROLLED SQUARE STEEL

Is refers to steel that is rolled or processed into a square cross-section. Square steel can be divided into hot-rolled and cold-rolled; the side length of hot-rolled square steel is 5-250mm, and the side length of cold-drawn square steel is 3-100mm.

Steel rolled or processed into a square cross-section

The density of steel is: 7.851g/cm3

Calculation of theoretical weight of steel

The unit of measurement for theoretical weight calculation of steel is kilogram (kg). The basic formula is:

W (weight, kg) = F (cross-sectional area mm2) × L (length, m) × ρ (density, g/cm3) × 1/1000

Square steel can be divided into hot-rolled and cold-rolled; the side length of hot-rolled square steel is 5-250mm, and the side length of cold-drawn square steel is 3-100mm.



PRODUCT USE

‌Hot-rolled square steel is widely used in many fields, mainly including construction engineering, machinery manufacturing, automobiles, ships, railways, bridges, electricity, etc.


Diameter d (or side length a)/mmAccuracy  tolerance/mmTheoretical weight of   round steel (kg/m)Square steel theoretical weight (kg/m)
1 group2   group3   group
5.5±0.20±0.30±0.400.1860.237
6±0.20±0.30±0.400.2220.283
6.5±0.20±0.30±0.400.260.332
7±0.20±0.30±0.400.3020.385
8±0.25±0.35±0.400.3950.502
9±0.25±0.35±0.400.4990.636
10±0.25±0.35±0.400.6170.785
11±0.25±0.35±0.400.7460.85
12±0.25±0.35±0.400.8881.13
13±0.25±0.35±0.401.041.33
14±0.25±0.35±0.401.211.54
15±0.25±0.35±0.401.391.77
16±0.25±0.35±0.401.582.01
17±0.25±0.35±0.401.782.27
18±0.25±0.35±0.4022.54
19±0.25±0.35±0.402.232.83
20±0.25±0.35±0.402.473.14
21±0.30±0.40±0.502.723.46
22±0.30±0.40±0.502.983.8
23±0.30±0.40±0.503.264.15
24±0.30±0.40±0.503.554.52
25±0.30±0.40±0.503.854.91
26±0.30±0.40±0.504.175.31
27±0.30±0.40±0.504.495.72
28±0.30±0.40±0.504.836.15
29±0.30±0.40±0.505.186.6
30±0.30±0.40±0.505.557.06



‌‌
